| Tip display | Optically Bonded LCD |
| Diagonala display | 7 inch / 9 inch / 12 inch |
| Rezolutie display | 800 x 480 WXGA / 800 x 480 WXGA / 1280 x 800 WXGA |
| Luminozitate | 1,500 nits |
| Unghiuri vizibilitate | Top 50° / Bottom 60° / Left 70° / Right 70° |
| Dimensiuni | 240 x 135 x 62 mm / 287 x 161 x 62 mm / 357 x 215 x 62 mm |
| Masa | 1.38 kg / 2.27 kg / 2.95 kg |
| Water Ingress Protection | IPx6 & IPx7 |
| Temperaturi operare | -25°C - + 55°C |
| Tensiune alimentare | 8 - 16 V CC |
| GNSS / GPS | Built-in GNSS Receiver |
| Wi-Fi | WiFi - 802.11 b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 |
| Memorie interna | 8GB Solid State |
Durata de livrare: 1

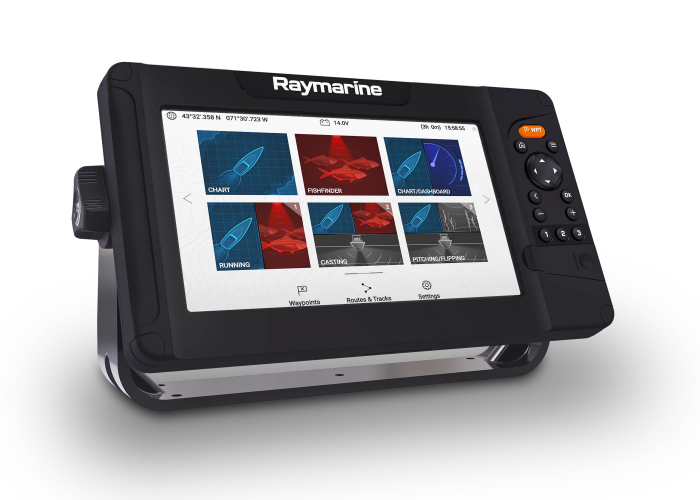

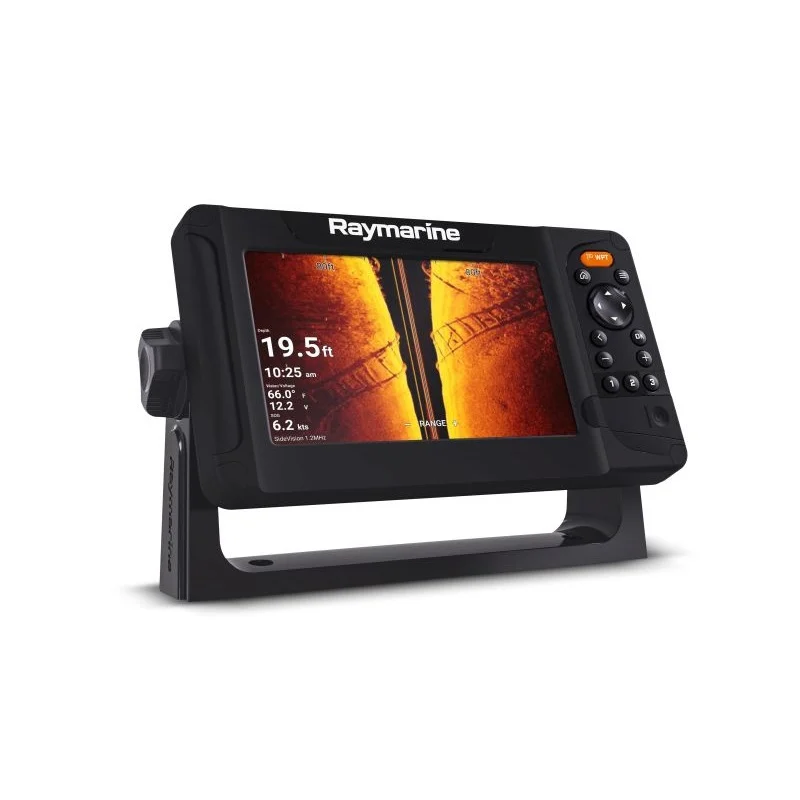

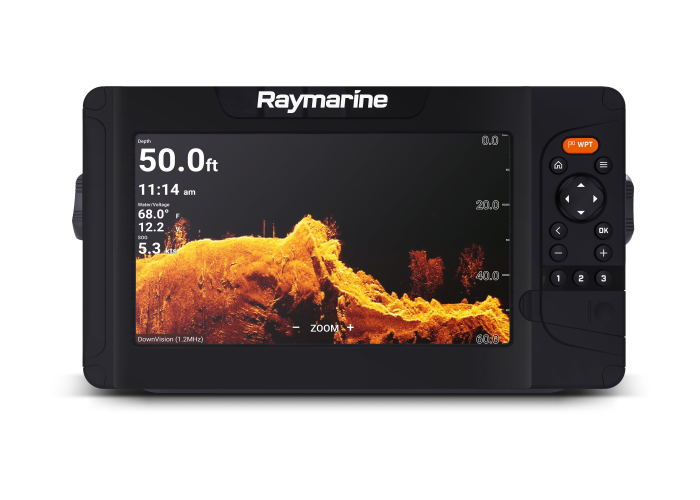

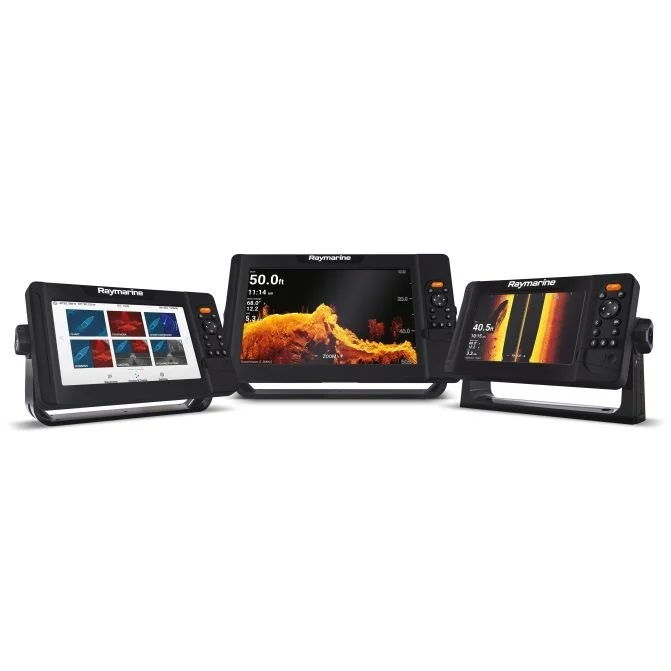

Sonar integrat 4 in 1 Raymarine HYPER CHIRP 1.2 MHz, DownVision, SideVision & RealVision 3D incorporat in display-ul multifunctional Raymarine Element HV.

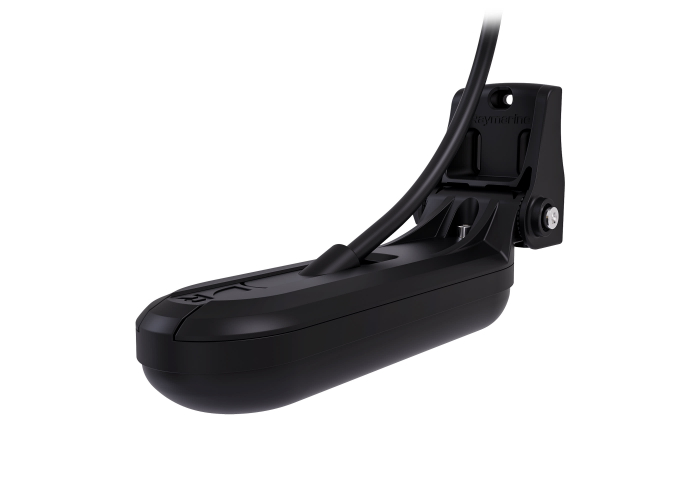

Pachetul oferit include sonda de oglinda all-in-one HV-100+.
Pentru alte variante de sonde compatibile contactati MarineLife.
